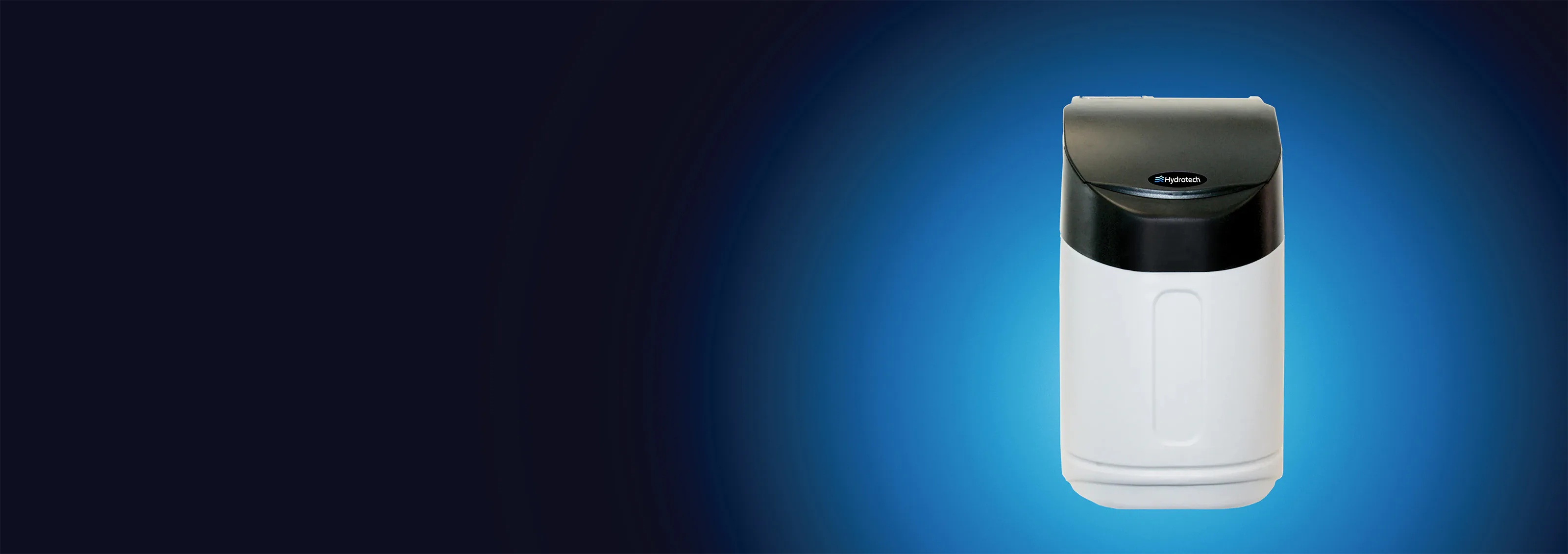

850 Series Compact
Affordable, Easy to Use, Small
The ideal choice for apartments, condominiums or
other installations with space constraints.
Enjoy certified water softening and
Warranty
Certifications
Key Features
Heavy-duty cabinet constructed with NSF certified high-density polyethylene
NSF certified electronic downflow control valve with proven piston, seal & spacer technology
NSF certified high-gloss pressure tank
Brine safety valve for overflow protection
Sliding cover design for easy salt refill
Valve Features
Professionally Engineered for Performance
| MODEL NUMBER | HT850-45C |
|---|---|
| Item Number | 15010059 |
| CAPACITY (GRAINS) | |
| @ 10 lbs / Cubic Feet | 12,600 |
| @ 6 lbs / Cubic Feet (Factory Setting) |
11,250 |
| @ 3 lbs / Cubic Feet | 6,930 |
| Regeneration Water Usage (Gallons) | 15.4 |
| Resin Quantity (Cubic Feet) | 0.45 ft³ |
| Pressure Tank Size (Inches) | 10 x 17 |
| Media Loaded | Yes |
| Salt Storage Capacity | 100 lbs |
| Service Flow Rate | 10.0 US gpm |
| Backwash Flow Rate | 2.0 US gpm |
| Shipping Weight | 54 lbs |
| Regeneration Type | DOWNFLOW (CO-CURRENT) |
| Plumbing Connections | INCLUDES 3/4" 90° NPT ELBOWS |
| Resin Type | AQUAFINE® 8% CATION EXCHANGE RESIN |
| Electrical Requirements | INPUT 120V 60 Hz - OUTPUT 12V 650mA |
| Water Temperature Limits | MIN 40° - MAX 110° F (4° - 43° C) |
| Water Pressure Limits | MIN 30 - MAX 125 PSI (207 - 862 KPA) |
Dimensions
| HT850 Series | |
|---|---|
| BRINE TANK / CABINET | 13.1 x 19.9 x 22.6 |
80155268
