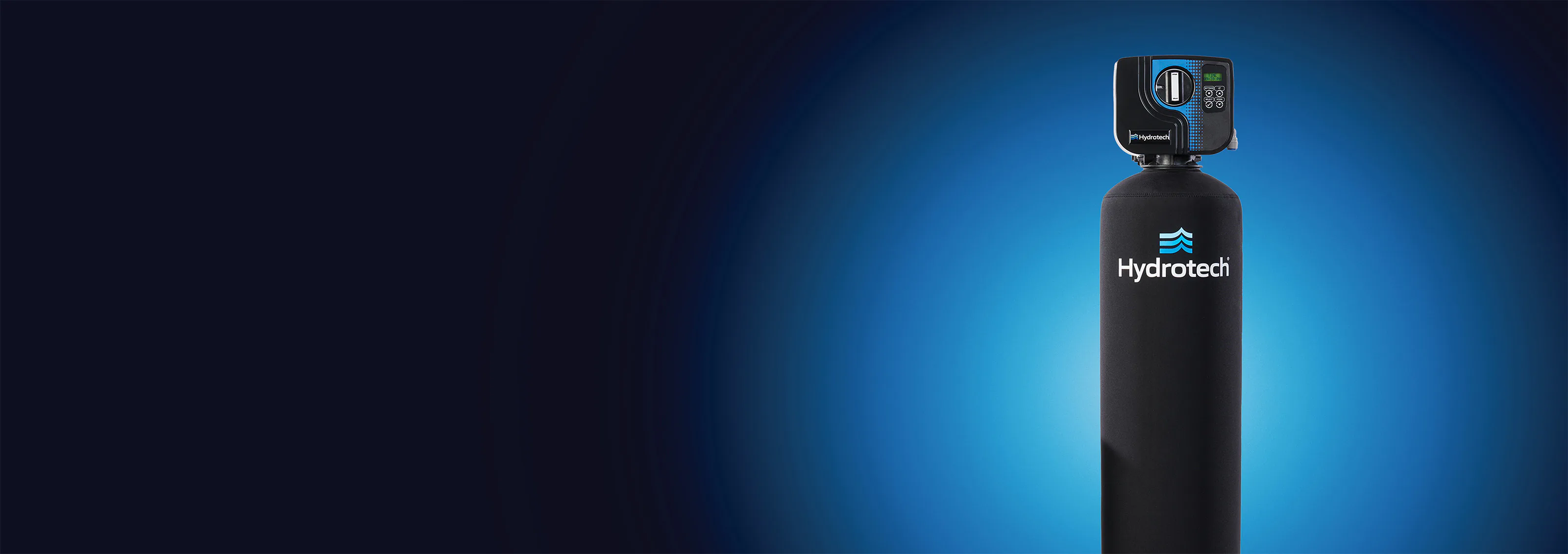

HT765-NEX
Turbidity, Ferric Hydroxide (red water iron) and Sediment Filter
Remove suspended solids, Ferric Hydroxide (red water iron) or sediment from your well or water system down to five (5) Microns. Next-Sand™ has proven extremely effective and will double the service flow of multimedia or sand filters.
Hydrotech branded neoprene pressure tank jackets are optional.
Warranty
Certifications
Key Features
Next-Sand™: Certified to NSF/ANSI/CAN 61, which now includes NSF/ANSI/CAN 372 Lead Free requirements, Next-Sand™ is a remarkable advance in media filtration technology. Based on a rare natural mineral that is highly processed and refined, Next-Sand’s unique properties allow it to radically alter the performance and cost of media filtration.
The hardness, stability and micro-porous character of Next-Sand™ makes it a perfect filtration media for virtually every application in the water industry.
Valve Features
Professionally Engineered for Performance
| MODEL NUMBER | HT765-075NEX | HT765-100NEX | HT765-150NEX |
|---|---|---|---|
| Item Number | 15550705 | 15550712 | 15550740 |
| Media (Cubic Feet) | 0.75 ft³ | 1.0 ft³ | 1.5 ft³ |
| Service Flow Rate | 2.0 US gpm | 3.0 US gpm | 5.0 US gpm |
| Peak Flow Rate | 4.0 US gpm | 8.0 US gpm | 8.0 US gpm |
| Backwash Flow Rate | 3.5 US gpm | 7.0 US gpm | 10.0 US gpm |
| Micron Rating | 3-5 micron | 3-5 micron | 3-5 micron |
| Pressure Tank Size (Inches) | 8 x 52 | 9 x 48 | 10 x 54 |
| Media Loaded | Yes | Yes | Yes |
| Shipping Weight | 93 lbs | 135 lbs | 205 lbs |
| Media Type | NEXT-SAND™ | ||
| Plumbing Connections | INCLUDES 3/4" 90° NPT ELBOWS | ||
| Electrical Requirements | INPUT 120V 60 Hz - OUTPUT 12V 650mA | ||
| Water Temperature Limits | MIN 40° - MAX 110° F (4° - 43° C) | ||
| Water Pressure Limits | MIN 30 - MAX 125 PSI (206 - 862 KPA) | ||
Peak flow rates are intended for intermittent use only (10 minutes or less) and are for residential applications only. Do not use peak flow rate for commercial applications or for a continuous rate when treated water supplies are geothermal heat pump, swimming pool, etc. For satisfactory operation, the pumping rate of the well system must equal or exceed indicated backwash flow rate.
Dimensions
| HT765-NEX | 075 | 100 | 150 |
|---|---|---|---|
| TANK/VALVE A x B (inches) |
52 x 8 | 62 x 10 | 60 x 12 |
